Coilmatik 400D

Double Head Coiler for Single & Multicore Cables

  • Working Range : 1.5 - 16 mm² single wires, 2x0.5 - 4x6 mm² multicore cables
  • Double winding heads
  • Up to 5 coils per minute
  • ± % 0.15 length tolerance
  • 630 - 1600 mm driven payoff
  • Variable coil outer diameter and height
  • Siemens SIMOTION control system
DOMEKS

Configuration

  • A - COILMATIK 400D Coiling Unit
  • B - DM1600 Driven Payoff
  • C - SH800 Shrink Film Unit
DOMEKS

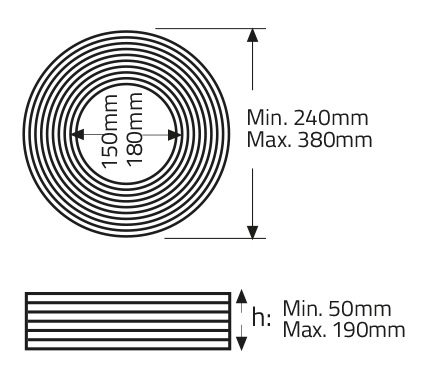

Coil Dimension

DOMEKS

Cable Type

DOMEKS

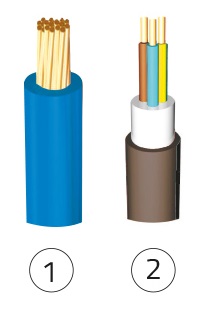

  1. Rigid, flexible or multi stranded insulated single wire; From 1,5 mm² up to 16 mm²
  2. Flexible or rigid multi core cable; From 2x0,75 mm² up to 4x2,5 mm²
  3. Flat twin and eart type cable from 2X1+1 up to 2x4+2,5 mm²
