Doublematik 400
Single Head Coiler & Spooler for Single & Multicore Cables
- Working Range : 1.5 - 4x6 mm² diameter cables
- Single winding head
- Up to 3 coils and up to 2 spools per minute
- ± % 0.15 length tolerance
- 630 - 1600 mm driven payoff
- Variable coil outer diameter and height
- Siemens SIMOTION control system
Configuration
A - DOUBLEMATIK 400 Coiler and Spooler Unit
B - DM1600 Driven Payoff
C - Spool Feeding Unit
D - SH800 Shrink Film Unit

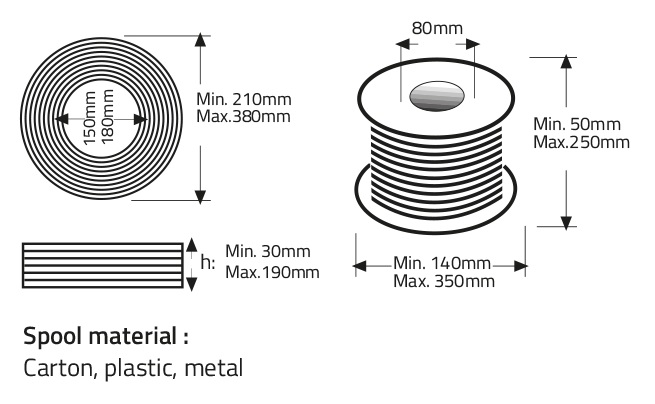

Coil Dimension;

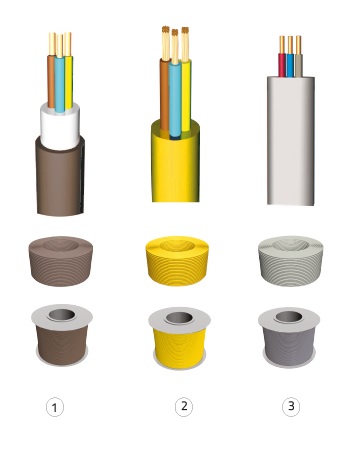

Cable Type;
- Rigid, flexible or multi standed insulated single wire coiling from 1,5 mm² up to 6 mm²
- Filexible or rigid multi core cable spooling from 2x0,75 mm² up to 4x4 mm²
- Flat twin and earth type cable spolling from 2x1+1 mm² up to 2x4+2,5 mm²
