Triple Quadromatik 400
Triple Head Coiler & Spooler For Single & Multicore Cables
- Working Range: 1.5 - 4x2.5 mm² diameter cables
- Triple winding heads
- Up to 6 coils and 5 spools per minute
- Single-point spool feeding
- Easy to use - user friendly design
- ± % 0.15 length tolerance
- 630 - 1600 mm driven payoff
- Variable coil outer diameter and height
- Siemens SIMOTION control system
Configuration
A - TRIPLE QUADROMATIK 400 Coiling & Spooling Unit
B - DM1600 Driven Payoff
C - Spool Feeding Conveyors
D - SH800 Shrink Film Unit
Optional Equipment
E - Palletizer
F - Empty Pallet Magazine
G - Pallet Stretching Unit

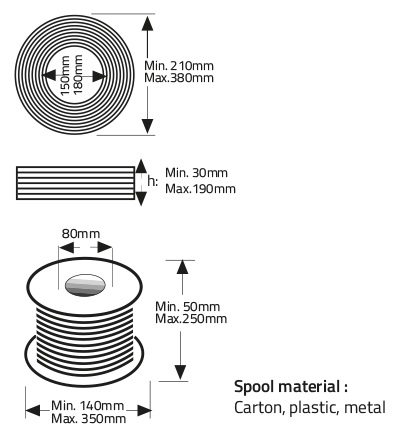

Coil/Spool Dimension;
Cable Type
- Rigid, flexible or multi standed insulated single wire coiling from 1,5 mm² up to 6 mm²
- Filexible or rigid multi core cable spooling from 2x0,75 mm² up to 4x4 mm²
- Flat twin and earth type cable spolling from 2x1+1 mm² up to 2x4+2,5 mm²
